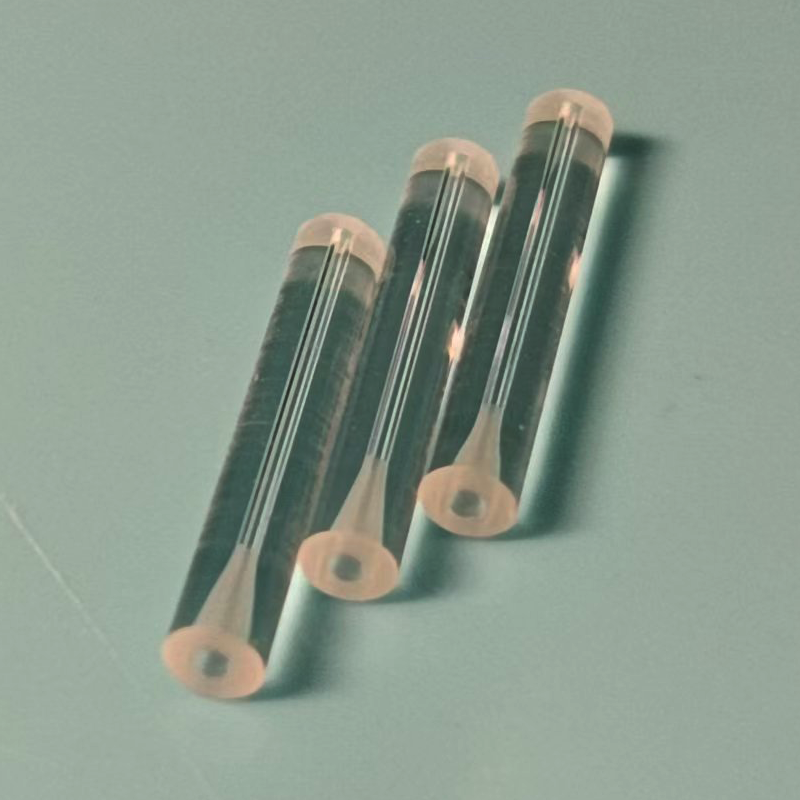

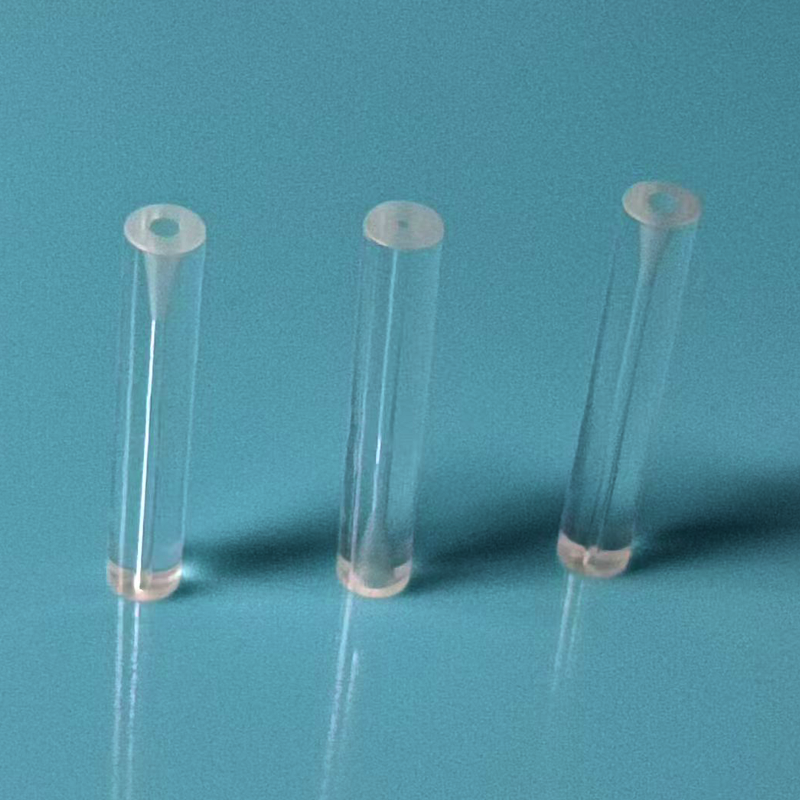

2x0.25x12mm Flared End Quartz Glass Tube For Optical Fiber Protection

उत्पत्ति के प्लेस	चीन
मॉडल संख्या	क्यूटी-एफटी-2x0.25x12

उत्पाद विवरण

सामग्री	उच्च शुद्धता फ़्यूज्ड सिलिका (SiO2 > 99.99%)	बहरी घेरा	2 मिमी
दीवार की मोटाई	0.25 मिमी	लंबाई	12 मिमी
अधिकतम परिचालन तापमान	1100°C	ट्यूब डिज़ाइन	फ्लेयर्ड बेल-माउथ (एक सिरा बड़ा)
आंतरिक दीवार	चिकने, सटीक छिद्र, गड़गड़ाहट रहित सिरे	रासायनिक प्रतिरोध	एचएफ, मजबूत एसिड और क्षार, कार्बनिक सॉल्वैंट्स
संचरण	यूवी-दृश्यमान रेंज	पवित्रता	कोई धातु आयन वर्षा नहीं
आवेदन	फ़ाइबर कनेक्टर स्लीव, फ़्यूज़न स्प्लिस प्रोटेक्शन, मल्टी-कोर फ़ाइबर प्रबंधन
प्रमुखता देना	flared end quartz glass tube , 2x0.25x12mm quartz glass tube , Optical fiber protection quartz glass tube

एक संदेश छोड़ें

उत्पाद विवरण

Product Overview

The Quartz Flared Fiber Protection Tube (OD2mm x Wall 0.25mm x Length 12mm) is a precision-engineered micro component designed for bare fiber protection in optical communication devices. Manufactured from high-purity fused silica (SiO2 > 99.99%), it features a unique bell-mouth flared design that combines smooth fiber insertion with secure locking — protecting delicate bare fibers from mechanical damage, thermal stress, and environmental contamination.

Core Design: Flared Bell-Mouth Structure

Feature	Benefit
Flared Inlet (Large End)	Guides fiber threading smoothly, eliminating insertion resistance and preventing coating abrasion
Narrow Locking End (Small End)	Secures fiber in position, preventing pull-out and bending-induced core fracture
Burr-Free Precision Ends	Eliminates risk of fiber coating cut from sharp tube edges

Key Features

1100°C High Temperature Resistance: Replaces conventional heat-shrinkable sleeves under extreme thermal conditions, ideal for industrial base stations and power substations
Strong Acid & Alkali Resistance: Outstanding chemical durability against corrosive environments, ensuring long-term protection in harsh conditions
High Purity Without Metal Precipitation: SiO2 > 99.99% with zero ion leaching, preserving signal integrity in precision optical paths
UV Transmittance: Excellent optical clarity for UV-curable adhesive curing and visual fiber inspection
Precision Bore & Smooth Inner Wall: Tight diameter tolerance with low-friction inner surface for consistent fiber positioning

Applications

Application	Description
Fiber Connector & Pigtail Sleeves	Pre-installed inside FC/SC/LC connectors to protect fibers against pull stress and bending breakage during plugging/unplugging; ideal for optical modules and transceivers
Fusion Splice Joint Protection	Sealed tube encapsulates fusion splices to isolate damage from high heat, grease and moisture; widely used in high-temperature industrial base stations and power substations
Multi-Core Bundled Fiber Management	Flared opening gathers multiple bare fibers for neat cable routing; applied in optical splitters and fiber distribution boxes

Competitive Advantages

vs. Heat-Shrinkable Sleeves: Withstands 1100°C vs ~200°C limit; transparent quartz enables visual inspection without sleeve removal; zero outgassing in vacuum or high-temperature environments

vs. Ceramic Ferrules: Lighter weight with comparable hardness; UV-transparent for adhesive curing; precision bore with smoother inner wall finish; more cost-effective for high-volume deployment

vs. Plastic Protection Tubes: Superior thermal stability with no softening or deformation; excellent organic solvent resistance; long-term dimensional stability without yellowing or embrittlement

Specifications

Parameter	Value
Material	High Purity Fused Silica (SiO2 > 99.99%)
Outer Diameter	2mm
Wall Thickness	0.25mm
Length	12mm
Max Operating Temperature	1100°C
Design Type	Flared Bell-Mouth (One End Enlarged)
Chemical Resistance	HF, Strong Acid & Alkali, Organic Solvents
Inner Wall	Smooth, Precision Bore, Burr-Free Ends
Purity	No Metal Ion Precipitation
